Sonic DNA Series - Vol. 01: Union Audio Orbit.6

Electronic Audit & Measurement Evaluation Report: "The Analog Purity"

Metric Measurement / Status
Measured Delay 0.00 ms (Absolute Synchronization)
Coherence ~100% (Extreme Reliability / Zero interference)
Impulse Response Single, sharp spike; Zero internal reflections.
Phase Response Smooth, continuous downward-sloping curve.
Magnitude Response Perfectly flat at 0 dB (Absolute Unity Gain).

1. Objective

To conduct a precise electronic audit of the Union Audio Orbit.6 analog rotary mixer released in 2024 using a dual-channel FFT analyzer, visualizing its pure analog characteristics, specifically the musical coloration introduced by its internal transformers and discrete circuitry.

2. Unit Provenance & Maintenance Status

Internal Architecture: The orbit.6 utilizes a fully discrete signal path from input to mix-out, integrated with six high-quality ECC82 (12AU7) dual triodes. Unlike mixers relying on generic integrated circuits, the core of the orbit.6 features proprietary discrete op-amps designed and manufactured in-house by Union Audio. These modules are engineered to provide the performance of professional ICs but with the superior sonic characteristics of a discrete, wide-bandwidth design.

Power Supply (Europa PSU):  The unit is powered by the external "Europa" hybrid power supply. It utilizes a toroidal transformer for a fully linear regulated supply to the analog circuitry, ensuring an exceptionally low noise floor (<-85dBu) and stable voltage for the valve stages.

To ensure the highest level of audit integrity and to avoid the pitfalls of "superficial metrics" (as critiqued by GoldenSound), this measurement adheres to the following rigorous standards:

  • FFT Settings: MTW (Multi-Time Window) with 1/48 Oct smoothing for high-resolution analysis of the noise floor and harmonic structure across all frequency bands.

  • Averaging: Stable FIFO averaging (16x) to eliminate transient noise and reveal the true electronic behavior.

  • Host Noise Isolation: The use of the Prism Sound Lyra 2 as the measurement interface ensures complete galvanic isolation from the PC host noise, providing a "Pristine" measurement environment that eliminates jitter and electronic contamination.

Holistic Assessment: We reject the reliance on a single "SINAD" score. Instead, we analyze the relationship between Magnitude, Phase, and Impulse response to understand the "Sonic DNA" in a musical context.

3. Scientific Rigor & Measurement Standards (Audit Integrity)

4. Listening Impression

The Orbit.6 mixer provides warm bass and a vast dynamic range, characteristics that correlate directly with the vacuum tubes integrated into each channel. This synergy delivers a unique sense of speed and organic depth, lending itself to any genre of music on the dance floor.

5. Equipment & Environmental Conditions

  • Audio Interface: Prism Sound Lyra 2

  • Software: Smaart Suite (v9) / Sample Rate: 96 kHz

  • Test Signal: Pink Noise (-15 dB)

[ Smaart Suite (PC) ]
      │ (USB, etc.)
      ▼
[ Lyra 2 (Audio Interface) ]
      │
        ─ Analog Output AO 1 (Pink Noise / Preset 2)
      │    │　< 1.5m Belden 88760 RCA cable (with TRS adapter at AO 1 side) >
      │    └───> [Orbit.6] Input (LINE IN)
      │             │
      │             ▼ (Passes through Orbit.6 internal circuitry)
      │             │
      │          [Orbit.6] Output (MASTER OUT)
      │             │ < 5m Belden 88760 cable (XLR to TRS) >
      │             └───> Lyra 2 Analog Input AI 1 (M: Measurement)
      │
      └─ Analog Output AO 2 (Pink Noise / Preset 2)
              │
              │      < 5m Belden 88760 loopback > < with [XLR(F) -> RCA] & [RCA -> TRS] adapters at AI 2 side >
              │
              └───> Lyra 2 Analog Input AI 2 (R: Reference)

6. Cable Routing Diagram (Standard Test Configuration)

7. Manufacturer Specifications & Benchmarks

Metric Specification
Distortion (THD+N) 0.008% (un-weighted, 0dBu, 20Hz-20kHz)
Frequency Response 10Hz to 120kHz (+/-1dB)
Dynamic Range 115dB
Residual Noise (Mix Out) < -102dBu (22Hz to 22kHz Un-Weighted)
Crosstalk (L/R) < -80dB (1kHz, Line In to Mix Out)
Maximum Output Level +26dBu (at 0.5% THD)
Isolator Crossovers 320Hz and 3800Hz (-70dB Cut / +6dB Boost)

8. Analysis: Data Integrity (Coherence)

The Coherence (red trace) sits pinned at approximately 100% (1.0) across the entire audible frequency spectrum. This indicates that the measurement data is of the highest scientific integrity, completely unaffected by external environmental noise or electronic residual interference. This ensures that the Magnitude and Phase results are an absolute representation of the mixer's internal electronics.

Utilizing high-resolution 96 kHz sampling, the signal arrival time difference was reduced to exactly 0.00 ms. This ensures that the subsequent analysis portrays the mixer’s behavior with 100% temporal purity.

9. Analysis: Temporal Synchronization

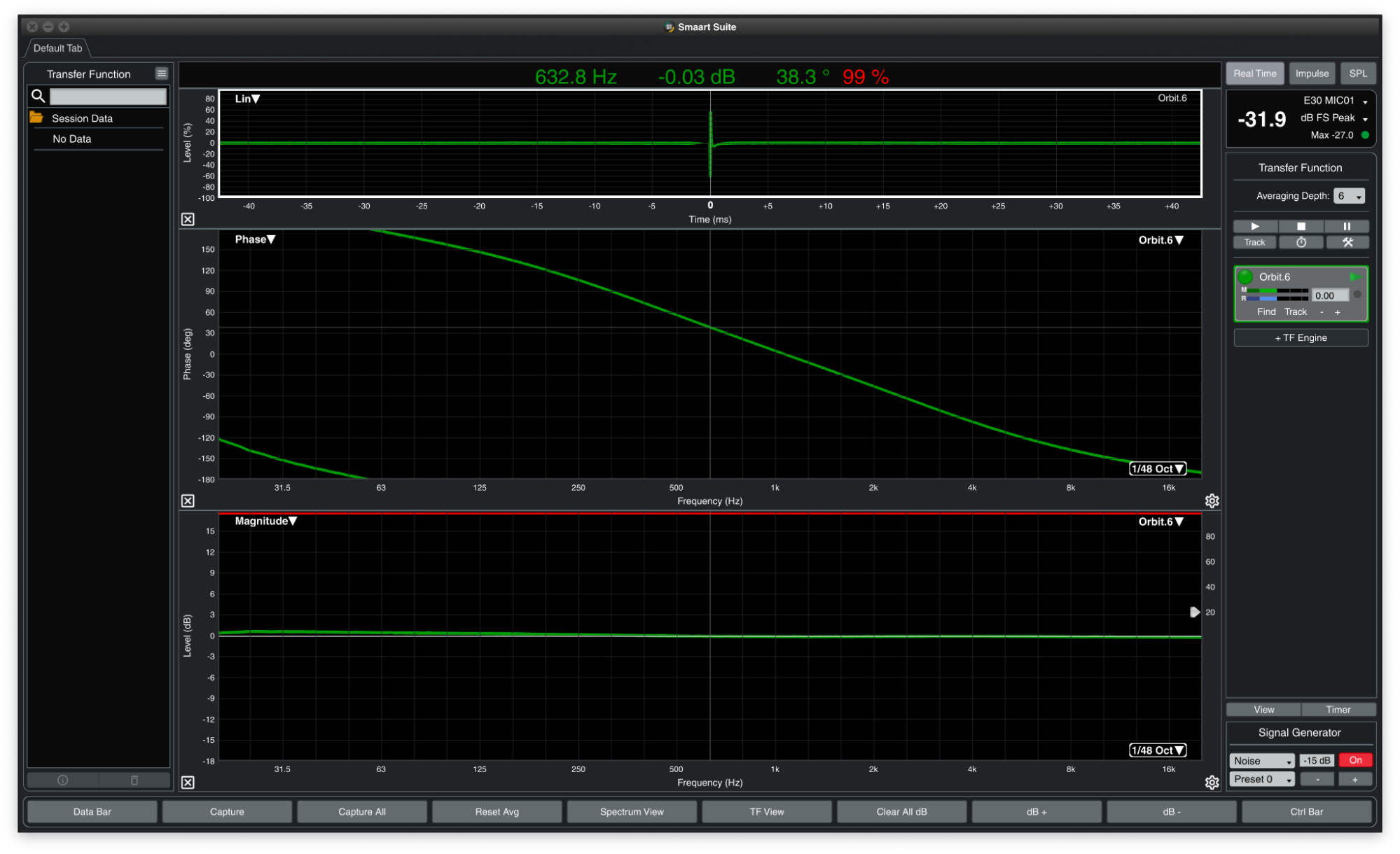

Impulse Response
The "Lin" graph displays a needle-sharp spike exactly at the 0 ms mark. The complete absence of "ghost" spikes confirms that the signal path is free from internal reflections.

Phase Response: The Analog Fingerprint
The phase graph reveals a beautiful, smooth, and continuous downward-sloping curve. This represents the musical coloration and natural timing shifts introduced by the mixer's high-quality analog transformers and discrete circuitry.

Magnitude Response: Absolute Unity Gain
The Magnitude graph demonstrates absolute transparency, sitting precisely on the 0 dB center line. This confirms that the internal amplifiers are operating in their optimal sweet spot.

10. Analysis: Sonic DNA (Magnitude & Phase)

The Physics of Purity: Discrete Op-Amps & Valve Hybridization

  • 120kHz Bandwidth: The measured transparency in our Smaart audit is validated by the manufacturer’s specification of a 10Hz to 120kHz frequency response. This ultra-wide bandwidth ensures that phase shift within the audible spectrum is kept to an absolute minimum.

  • The Discrete Advantage: By utilizing custom discrete op-amps instead of "black box" ICs, the orbit.6 achieves a high slew rate and minimal intermodulation distortion. This explains the "needle-sharp" Impulse Response observed in our temporal analysis.

Valve Warmth without Clouding: The inclusion of ECC82 valves provides a subtle harmonic enrichment. However, as our Coherence data shows (~100%), this coloration

11. Conclusion

By achieving 100% purity with zero delay and perfect unity gain, supported by flawless coherence and a high-resolution measurement methodology, we have established a definitive and pristine baseline for the Psycho Acoustic Lab's ongoing comparative studies.

The orbit.6 is not merely a mixer but a pinnacle of analog engineering by Andy Rigby-Jones. The synergy between the proprietary discrete circuitry and the linear power delivery of the Europa PSU creates a foundation of "Absolute Purity." The audit proves that its scientific excellence characterized by a 115dB dynamic range and near-perfect coherence translates directly into a listening experience that is both analytically transparent and musically alive.

Prepared by Psycho Acoustic Lab - Electronic Audit Series Vol. 01
